Description

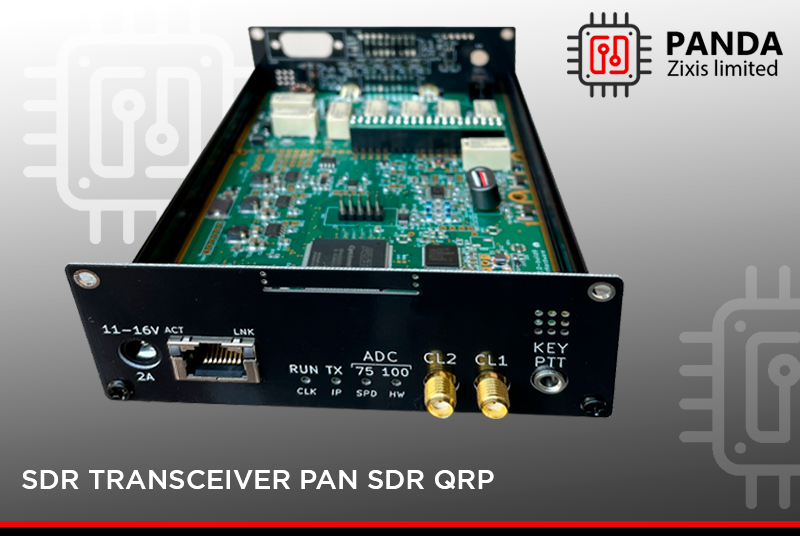

The Pan SDR QRP is the HF and 6M transceiver with 5W output power and a wide range of capabilities. Thanks to the constantly improving modern software and advantages of the direct sampling the Pan SDR QRP can solve any given task for a reasonable price. The Pan SDR QRP can be used either locally via the LAN interface or remotely, it gives you flexibility in arranging your working place as never before.
Applications:
- HAM amateur HF transceiver
- Remote operation just for fun and for contests
- Spectrum analyzer with the wide bandscope up to 60MHz
- Record IQ files and listen to them afterward
SDR Transceiver Pan SDR QRP Main features
Main features and capabilities of the transceiver:
- Immense functionality for a reasonable price. Designing each our device, we try to reach the best balance between the price and functionality
- External control connector. Connect up to 8 external devices to 8 powerful keys with open collectors, such as PAs, external filters, rotate antenna devices etc.
- Remote control operation. Using it, you connect PTT and CW-key to the E-Coder panel. Microphone and E-Coder are connected to the remotely set up PC
- TCI interface. Use it for seamless connection with third-party software
- No need for an external soundcard. The Pan SDR QRP does not require an external sound card and audio cables, just plug your headphones in the transceiver and listen to the air
- 16-bit ADC at 122.88 MHz. The Pan SDR QRP has the best ADC in its price range which provides 122 dB BDR
- Sample rates: 48-384 kHz. At the same time, you can use a 60 MHz wide bandscope + 2 software RXs, each has a SubRX
- Special mode for 768 kHz or 960 kHz sample rate, only for 1 RX + bandscope at the same time
- Supports 4M band only for RX in the 2nd Nyquist zone

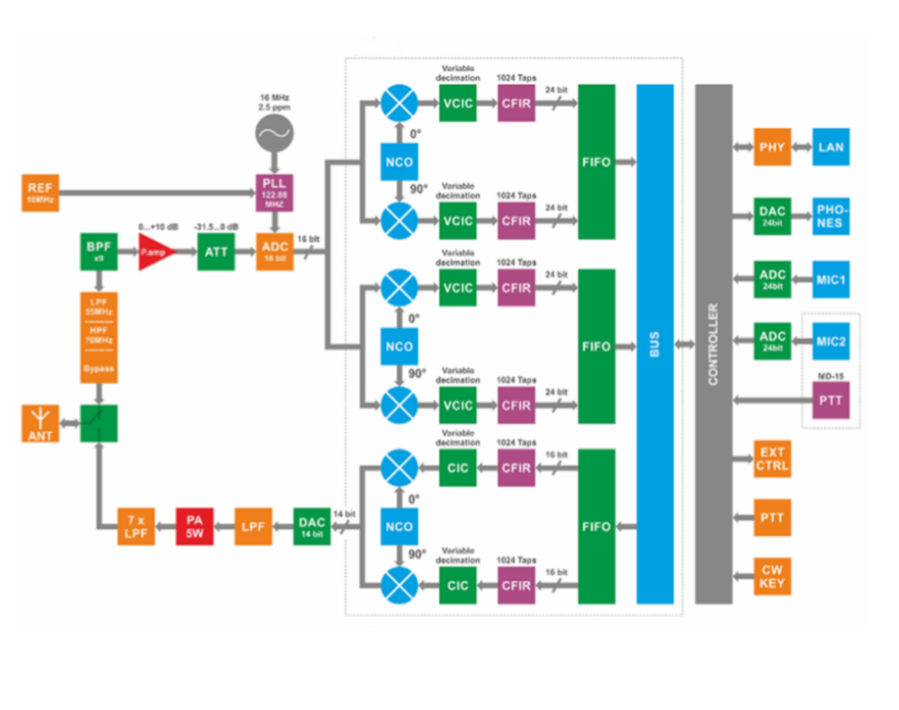

SDR Transceiver Pan SDR QRP Block diagram
