Description

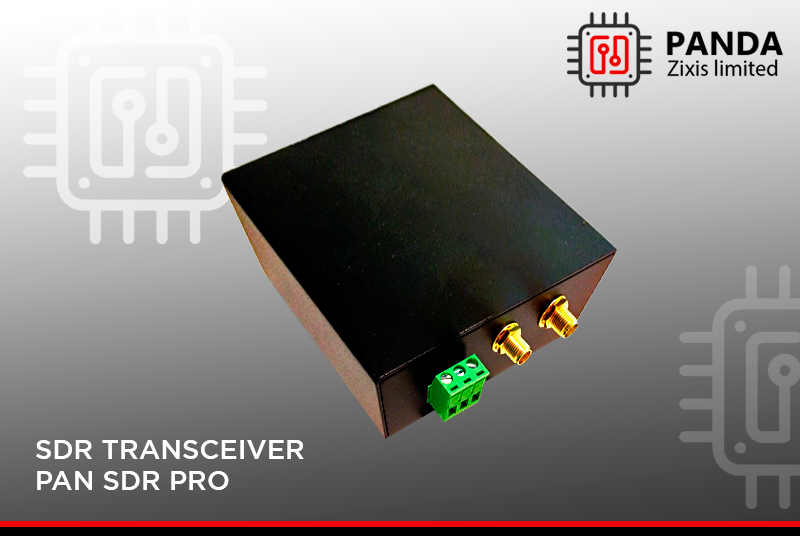

The Pan SDR Pro transceiver was designed for advanced operation on HF and VHF bands, even the most demanding operator will be surprised by its capabilities. Modern hardware along with the software makes this high-performance SDR transceiver the perfect base station and at the same time perfectly suitable for field operations.
Transceiver Pan SDR Pro include:
- Transceiver Pan SDR Pro
- LAN-cable for connection to a local network (1.8m)
- Power cable for connection to a power supply (2m)
- Audio-adapters JACK 6.3mm to JACK 3.5mm (2 pcs.)
- RF Cable Mini UHF — HF (PL259) 1Ft (0.3m 1 pc.)
SDR Transceiver Pan SDR Pro Main features
Main features and capabilities of the transceiver:
- Independent RX path based on DDC (Direct Down-Conversion) architecture
- Independent TX path based on DUC (Direct Up-Conversion) architecture
- 2 software RXs + SubRX for each of them (4 slices total) + independent wideband Bandscope up to 80 MHz
- A remote control operation, using it, you connect PTT and CW-key to the E-Coder panel. Microphone and E-Coder are connected to the remotely set up PC
- TCI interface for seamless connection with third-party software
- Professional TX processing module provides the most advanced tuning capability for voice operation
- ExtCTRL connector to control external devices with 8 powerful keys with open collector
- ALC connector for external power amplifiers
- Supports use of VHF transverters
- An opportunity to use the transceiver as a signal generator via DAC OUT connector (SMA connector)
- An opportunity to use external filters in the middle of the RF path, using ADC IN and RX OUT (SMA connector)
- Monitoring delay in CW mode is about 5-6 ms
- Input for external 10 MHz reference oscillator
- An opportunity to use the transceiver in SO2V mode
- Full duplex or half-duplex modes
- Antenna switch with 2 HF antenna connectors and separate VHF antenna connector

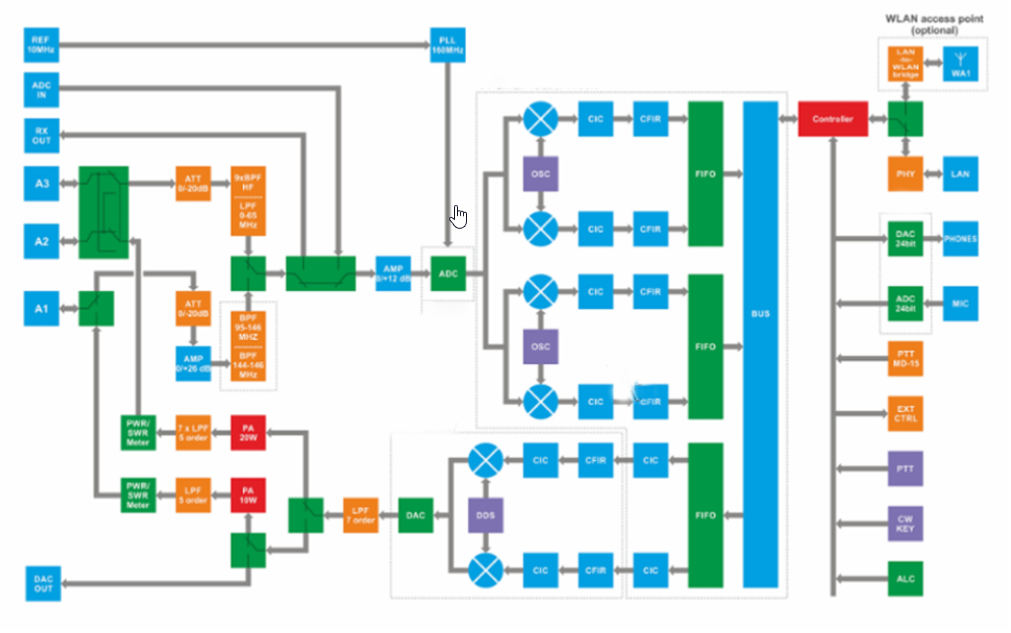

SDR Transceiver Pan SDR Pro Block diagram
